Physical properties:

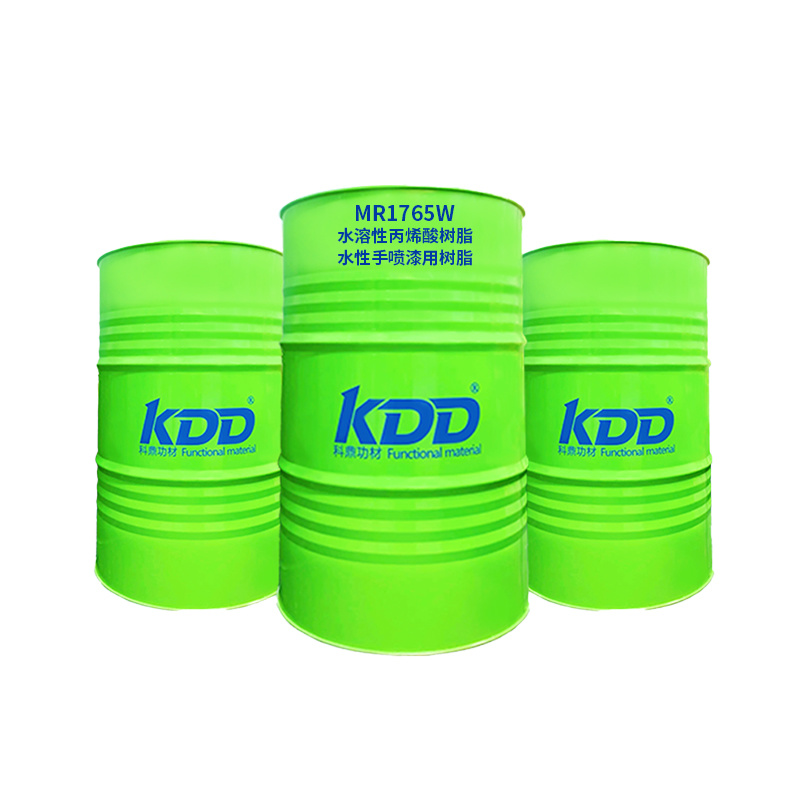

Product Description: Waterborne Thermoplastic Acrylic Resin
Solid content (±2%): 50
Viscosity cps/25°C: 3,000–5,000
Appearance: Transparent to slightly milky liquid
Chroma: ≤ 2
pH: 7–8
TG value ℃: 30
Features:
• Excellent adhesion between metal and plastic
• Excellent gloss
• Excellent flexibility
• Water resistance
• Leveling property
• Workability
Applications:
• Water-based hand spray paint
• Water-based plastic paint
• Water-based metallic paint
Solubility:
Ethanol ● Water ●
PM ● Ethanol ●
BCS ● PMA ●
●: infinitely diluted; ⦿: highly diluted; ○: slightly diluted; ×: insoluble
Reference recipe:
Single-component white paint:
KDD®MR1765W 60.0
DuPont 902+ Titanium Dioxide 25.0
Ethanol 10.0
Anti-White Water 4.7
BYK306 0.3
Water-soluble acrylic resin
Basic Performance:
Gloss (60° angle) 94.3Gs
Hardness F
Re-coatability PASS
Passes 24-hour immersion in water at 40°C
Base material application reference:
ABS √ Grinding Mokha Iron √
PVC √ 1060 Pure Aluminum ×
PC √ 5052 Aluminum Alloy ∆
PMMA√ AZ31B Magnesium-Aluminum Alloy√
PP × 304 Drawn Stainless Steel ∆
PPS √ Galvanized Steel Sheet∆
PET√ Brass√
Bakelite √ Glass √
Nylon √ Carbon fiber √
√: Excellent adhesion; ∆: Moderate adhesion; ×: No adhesion at all.
